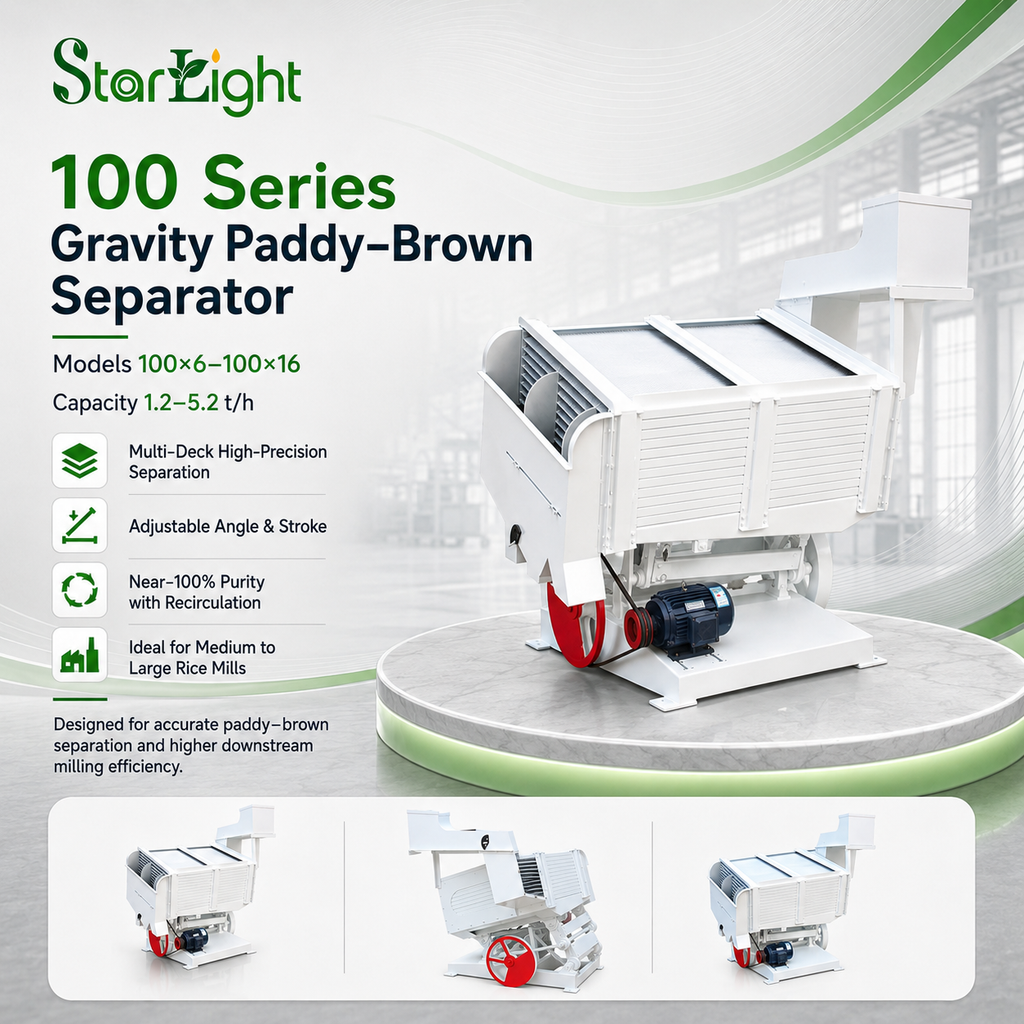

100 Series Gravity Paddy–Brown Separator (Models 100×6 to 100×16)
1/4
  • 100 Series Gravity Paddy–Brown Separator (Models 100×6 to 100×16)
  • 100 Series Gravity Paddy–Brown Separator (Models 100×6 to 100×16)
  • 100 Series Gravity Paddy–Brown Separator (Models 100×6 to 100×16)
  • 100 Series Gravity Paddy–Brown Separator (Models 100×6 to 100×16)
100 Series Gravity Paddy–Brown Separator (Models 100×6 to 100×16)

100 Series Gravity Paddy–Brown Separator (Models 100×6 to 100×16)

The 100 Series Gravity Paddy–Brown Separator separates un-hulled paddy from brown rice by specific gravity. A multi-deck gravity screen forms a thin moving bed so materials of different density and size follow separate paths to dedicated outlets. The unit supports recirculation (feed → separate → return → re-separate) to drive purity toward near-100%, boosting post-husking efficiency and whitening quality. Compact, stable, and easy to maintain, it fits new or existing milling lines.
Overview
  • Automatic separation of paddy and brown rice by gravity difference
  • Adjustable deck angle to match raw-grain density and paddy content
  • Recirculating process improves separation purity toward near-100%
  • Rigid construction, smooth running, and straightforward maintenance
  • Raises downstream efficiency and preserves whitening-stage purity
  • Multiple models to match plant capacity and layout needs
Why Choose It
  • High separation accuracy and clean discharge
  • Closed-loop recirculation for better efficiency
  • Works with different varieties and paddy ratios
  • Low noise and low energy in a compact footprint
  • Well suited to medium and large rice-milling lines
Technical specifications
  • Function: Post-husking separation of brown rice from un-hulled paddy (supports recirculation loop).
  • Adjustment: Deck angle & vibration amplitude (eccentric weights) adjustable on site.
  • Drive: Low-noise vibration drive with spring suspension (single motor, model-dependent power).
  • Power (kW): 1.1–1.5 across the series (see models below).
  • Capacity (t/h): 1.2–5.2 depending on model and raw grain conditions.
  • Models & dimensions

    100×6: 1.2–1.6 t/h | 1.1 kW | 500 kg | 1100 × 1640 × 1200 mm

    100×8: 1.6–2.1 t/h | 1.1 kW | 550 kg | 1100 × 1640 × 1320 mm

    100×10: 2.5–3.2 t/h | 1.5 kW | 650 kg | 1240 × 1700 × 1750 mm

    100×12: 3.4–4.0 t/h | 1.5 kW | 700 kg | 1240 × 1700 × 1820 mm

    100×14: 4.0–4.5 t/h | 1.5 kW | 750 kg | 1460 × 1700 × 1835 mm

    100×16: 4.5–5.2 t/h | 1.5 kW | 800 kg | 1460 × 1700 × 1850 mm
View Catalog (PDF)

Recommended Applications

For use after husking to separate brown rice from un-hulled paddy on rice-milling lines. Applicable to medium and large mills, grain-processing plants, and silo pre-processing lines where high separation efficiency and whitening purity are required.

Service and Warranty

12-month warranty from shipment (wear parts excluded). Installation/commissioning guidance, operator training, and technical support are provided. Adequate spare-parts supply; remote assistance or on-site service available.

High-Precision Gravity Separation

Balanced planar motion and tuned airflow/angle create a thin, stable layer for accurate paddy–brown splits.

Adjustable Screen Angle & Vibration

Field-adjustable inclination match local grain conditions for consistent purity and throughput.

Compact, Line-Friendly Design

Small footprint and straightforward inlet/outlet geometry simplify retrofits and platform planning.

High-Precision Gravity Separation

Balanced planar motion and tuned airflow/angle create a thin, stable layer for accurate paddy–brown splits.

Adjustable Screen Angle & Vibration

Field-adjustable inclination match local grain conditions for consistent purity and throughput.

Closed-Loop Recirculation

Built-in return path allows repeat passes, reducing re-work elsewhere and lifting net line efficiency.

Stable, Low-Noise Drive

Spring suspension minimize noise and energy use over long shifts.

Compact, Line-Friendly Design

Small footprint and straightforward inlet/outlet geometry simplify retrofits and platform planning.

Service-Friendly Access

Large covers and tensioned meshes make daily cleaning and inspections quick, preserving accuracy and uptime.

Closed-Loop Recirculation

Built-in return path allows repeat passes, reducing re-work elsewhere and lifting net line efficiency.

Stable, Low-Noise Drive

Spring suspension minimize noise and energy use over long shifts.

Service-Friendly Access

Large covers and tensioned meshes make daily cleaning and inspections quick, preserving accuracy and uptime.

Gravity Deck

Multi-Layer, High-Purity Split

Tiered deck uses density/size behavior to separate brown rice from un-hulled paddy with minimal carry-over.
Request a Quote

Tunable Settings

Adjustable Angle & Stroke

On-machine controls let you adapt to varietal, moisture, and paddy-content changes without stopping the line.
See Specifications

Recirculation Path

Close the Loop for Clean Output

Return paddy is routed automatically for re-husking, driving purity toward near-100% and easing downstream loads.
How It Works

Compact & Durable

Stable Drive, Small Footprint

Rigid frame, balanced vibration, and low power draw keep the unit quiet, reliable, and easy to fit into existing layouts.
Installation & Service

Product Configuration
Model Capacity (t/h) Power (kW) Weight (kg) Dimensions (mm)
100×6 1.2–1.6 1.1 500 1100 × 1640 × 1200
100×8 1.6–2.1 1.1 550 1100 × 1640 × 1320
100×10 2.5–3.2 1.5 650 1240 × 1700 × 1750
100×12 3.4–4.0 1.5 700 1240 × 1700 × 1820
100×14 4.0–4.5 1.5 750 1460 × 1700 × 1835
100×16 4.5–5.2 1.5 800 1460 × 1700 × 1850

Function: Separate brown rice from un-hulled paddy after the husker; feed clean brown forward, return paddy for re-husking.

Installation & Maintenance Notes

Set the separator on a level, rigid floor with clearance around inspection covers and discharge ports. Anchor the frame, verify voltage/phase, grounding, and rotation direction; set eccentric weights for the specified stroke. Align the inlet with the husker outlet/transition, and ensure return lines to the husker are unobstructed for recirculation.

Commission with clean brown/paddy mix at light feed; then trim deck angle, stroke, and feed rate to reach target purity and throughput. Maintain a thin, uniform bed across the deck.

After shutdown, isolate power and wait for a full stop; brush/air-clean deck screens and housings, check mesh/tension, inspect springs, seals, and fasteners, and re-tighten as needed. Replace worn meshes promptly to preserve accuracy.
