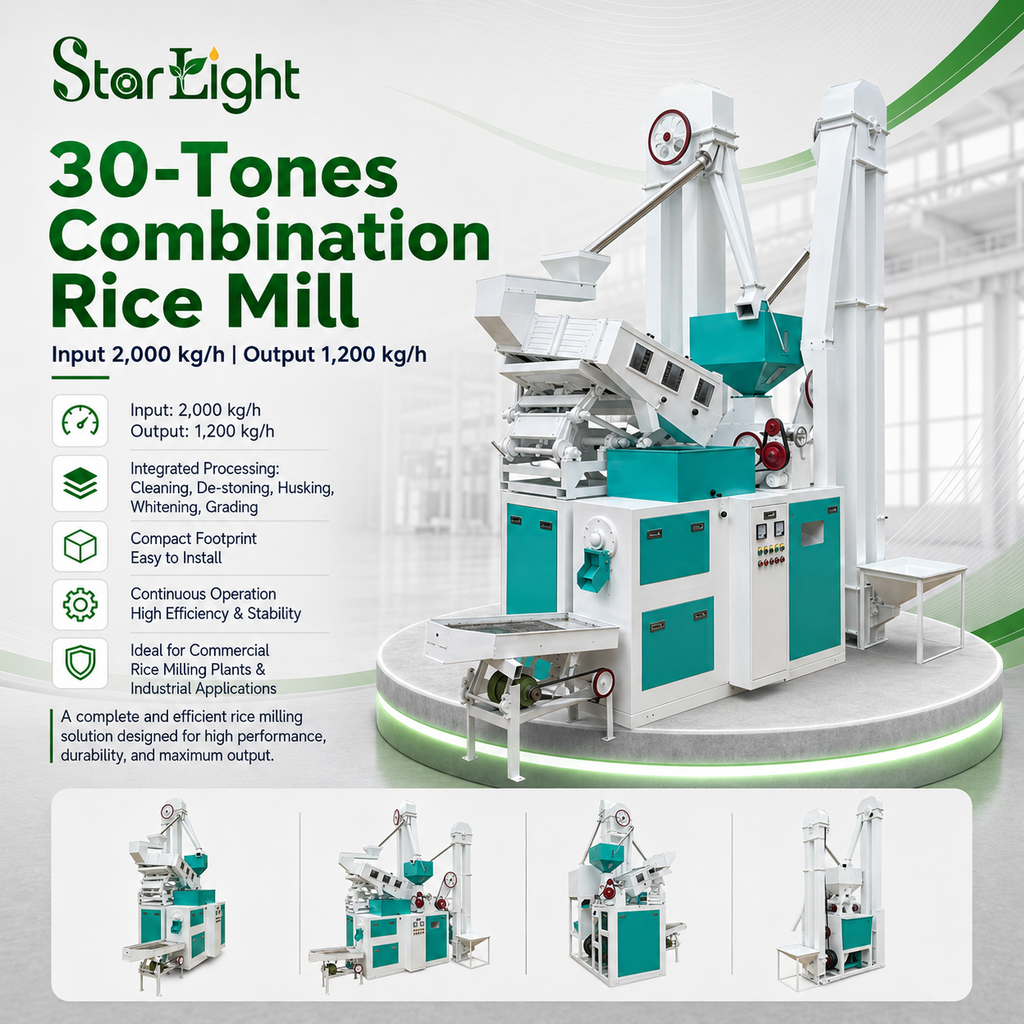

An combined milling line that merges pre-cleaning, de-stoning, elevation, husking, gravity separation, whitening and final grading into one compact system. Each section is capacity-matched for smooth flow, bright finish and high head-rice yield—ideal for automated, scalable production with a small footprint.
Established 1999 • 25+ Years • 50,000㎡ Danyang Factory • 2,000+ Plants Served • Head Rice Yield ↑ • kWh/t ↓ • Stable Uptime • Gentle Handling • Intake-to-Grading Lines • Turnkey 30–200 TPD • Request a Quote
Recommended Applications
Medium–large mills, grain processors and co-ops. Works as a standalone line from raw paddy to graded rice or as an upgrade module within an existing plant.
Service and Warranty
12-month warranty from dispatch (consumables excluded). Includes remote commissioning guidance, operator training, spare-parts support and optional on-site service by arrangement.
Optimized Layout & Compact Design
Stacked, space-saving footprint (≈5020 × 2500 × 3600 mm) shortens conveying paths and simplifies siting in existing plants.
High Yield & Low Broken Rate
Capacity-matched modules and precise settings protect head-rice and reduce re-friction for brighter, cleaner output.
Centralized Control & Easy Operation
Single control cabinet coordinates drives and interlocks; clear set-points make results repeatable shift to shift.
Ideal for Medium-Scale Mills & Export Projects
2,000 kg/h in and 1,200 kg/h out—a practical step up for co-ops and regional mills; voltage/options ready for export.
Seamless Grain Flow Design
Thin, uniform material beds from intake to grading minimize bottlenecks and keep throughput stable.
Service-Friendly, Modular Maintenance
Large access doors and standardized wear parts enable quick screen/roll changes and faster routine cleaning.
Clean Intake
Pre-Clean + De-Stone
Rotary drum + TQS de-stoner remove straw, sand and stones before grain touches sensitive rollers—protecting downstream yield and lowering wear.
Gentle Husk Removal
8" Gearless Husker + Gravity Separation
The 8-inch gearless husker delivers stable shelling with low breakage; the 80×6 gravity separator returns un-hulled paddy and feeds clean brown rice forward for whitening.
Bright, Even Finish
High-Airflow Sand-Roll Whitening
The No.17 strong-air sand-roll whitener evens surface removal, controls temperature and raises head-rice ratio for a glossy, uniform finish.
Final Quality Control
Multi-Deck Grading & Central Control
A broken-rice sieve splits whole from brokens for consistent bag quality, while the centralized control cabinet keeps drives, aspiration and safety interlocks in sync.
| Module | Function | Qty | Power (kW) |
|---|---|---|---|
| Raw paddy elevator | Lift paddy to intake | 1 | 0.75 |
| Ø650 drum cleaner + de-stoner | Remove impurities & stones | 1 | 0.75 + 3.0 |
| Double elevator | Transfer between sections | 1 | 0.75 |
| 8" gearless husker | Husk removal | 1 | 5.5 |
| 80×6 gravity separator | Separate brown rice & return paddy | 1 | 1.16 |
| No.17 strong-air sand-roll whitener | Whitening / polishing | 1 | 22 |
| Control cabinet | Centralized operation & safety | 1 | — |
| Broken-rice sieve | Grade whole vs. brokens | 1 | 0.37 |
Install on a level, ventilated floor with moisture protection and clear access to inspection doors, cyclones and discharge chutes. Provide matched power, correct voltage/phase, proper grounding and ducting for aspiration. Align and plumb elevators; verify rotation direction; set belt/chain tension and fit all guards.
Commission empty in sequence (elevators → cleaner/de-stoner → husker → separator → whitener → grading sieve). Start with a small feed and tune de-stoner air/angle, husker pressure & roll gap, separator stroke/angle and whitener clearance/airflow to the local variety and moisture.
For routine care, keep feed steady; monitor current and temperature; clean screens, decks, cyclones and sieve trays daily; inspect belts, seals and bearings; grease per schedule and recheck tensions. Always isolate power and wait for full stop before servicing; wear eye/ear protection and a dust mask when panels are open.
