8.5 Iron-Roll Rice Mill (Infeed 700 kg/h | White Rice 400 kg/h)
1/6
  • 8.5 Iron-Roll Rice Mill (Infeed 700 kg/h | White Rice 400 kg/h)
  • 8.5 Iron-Roll Rice Mill (Infeed 700 kg/h | White Rice 400 kg/h)
  • 8.5 Iron-Roll Rice Mill (Infeed 700 kg/h | White Rice 400 kg/h)
  • 8.5 Iron-Roll Rice Mill (Infeed 700 kg/h | White Rice 400 kg/h)
  • 8.5 Iron-Roll Rice Mill (Infeed 700 kg/h | White Rice 400 kg/h)
  • 8.5 Iron-Roll Rice Mill (Infeed 700 kg/h | White Rice 400 kg/h)

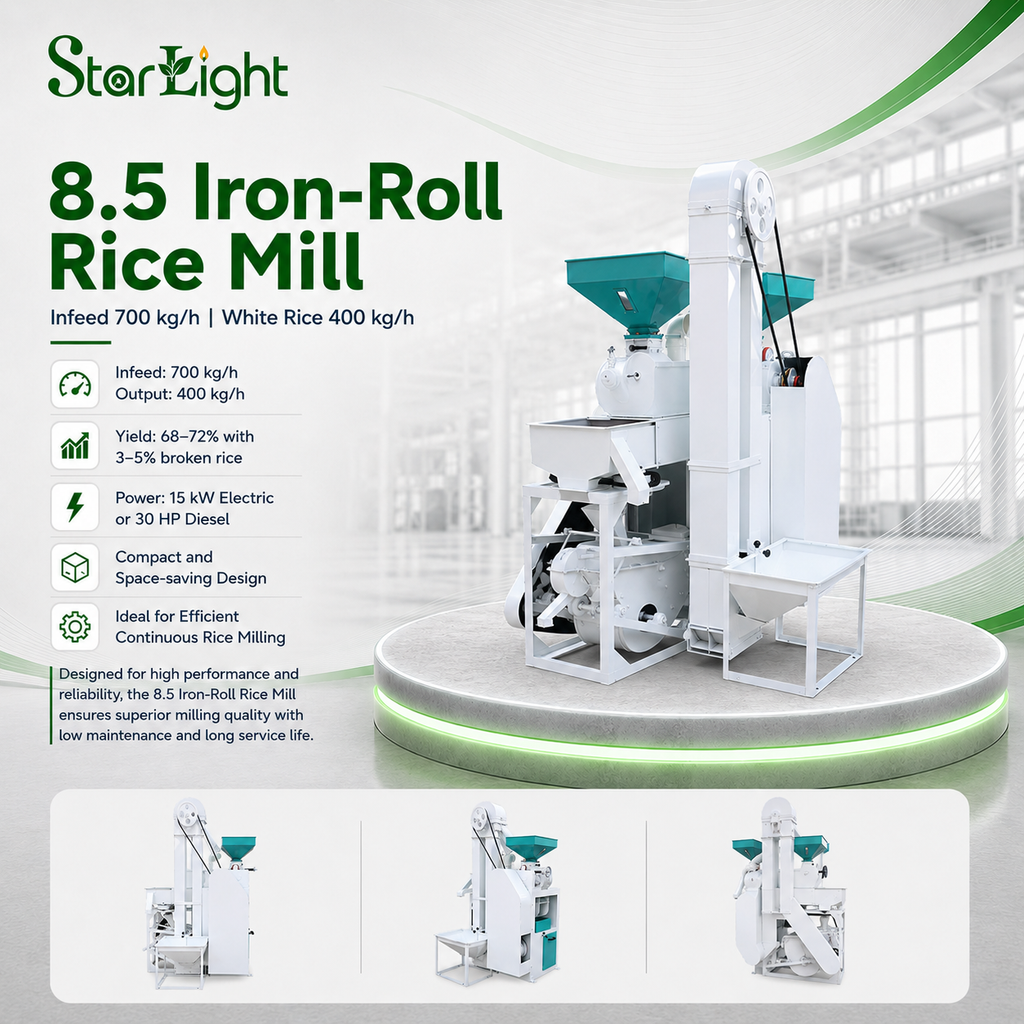

8.5 Iron-Roll Rice Mill (Infeed 700 kg/h | White Rice 400 kg/h)

8.5 Iron-Roll Rice Mill (Infeed 700 kg/h | White Rice 400 kg/h)

A compact, single-power rice mill that combines cleaning, de-stoning, husking and iron-roll whitening in one line. Designed for continuous operation with low breakage (≈3–5%) and high yield (≈68–72%), it’s ideal for rural mills, co-ops and small/medium processors.
Overview

A compact, single-power rice mill that combines cleaning, de-stoning, husking, and iron-roll whitening in one line. Designed for continuous operation with 700 kg/h infeed and 400 kg/h white-rice output, it delivers bright, even finish with ≈68–72% yield and ≈3–5% broken. The stacked layout, integrated elevators, and simple controls make it easy to place, start, and run in small to mid-size mills and co-ops.
Why Choose It
  • All-in-one flow: fewer transfers and faster commissioning than separate machines.

  • Stable quality: matched settings keep head-rice high and breakage low.
  • Single power source: 15 kW electric or 30 HP diesel for sites with limited infrastructure.
  • Small footprint, big output: about 1.5 m² install area with steady 400 kg/h finished rice.
  • Easy upkeep: quick-access doors and common wear parts reduce maintenance time and cost.
  • Rural-ready: reliable performance where space, power, and staffing are constrained.
Technical Specifications
  • Overall size (L×W×H): 1500 × 1100 × 2300 mm

  • Net weight: ≈450 kg
  • Infeed capacity (paddy): 700 kg/h
  • White-rice output: 400 kg/h
  • Drive power: 15 kW electric or 30 HP diesel (single power source drives full set)
  • Main shaft speed (whitener): ≈1100 r/min
  • Milling yield: ≈68–72%
  • Broken percentage: ≈3–5%
  • Process modules: cleaner + de-stoner → 6" straight-gear husker → 8.5 iron-roll whitener (with twin elevators)
  • Footprint requirement: about 1.5 m² installation area
  • Utilities (electric version): 380–415 V, 50/60 Hz three-phase (configurable)
  • Scope/limits: rice only; husk crushing not included (add separate crusher if needed); not for corn/wheat
View Catalog (PDF)

Established 1999 • 25+ Years • 50,000㎡ Danyang Factory • 2,000+ Plants Served • Head Rice Yield ↑ • kWh/t ↓ • Stable Uptime • Gentle Handling • Intake-to-Grading Lines • Turnkey 30–200 TPD • Request a Quote

Recommended Applications

Suited to small and mid-size mills, co-ops, and rural buying stations targeting ~700 kg/h intake and ~400 kg/h white rice. Handles long/medium-grain paddy across typical moisture ranges. Ideal for upgrading manual/legacy setups where space and power are limited. (Not for corn/wheat; add a separate husk crusher if pulverizing is required.)

Service and Warranty

12-month warranty from shipment (consumables excluded). Includes remote commissioning guidance, operator training materials, and preventive-maintenance checklists. Genuine spare parts are stocked for fast dispatch, and on-site setup/training can be arranged on request. Ongoing support available via phone/video for tuning, diagnostics, and parts selection.

Heavy-Duty Iron Roller for Extra Durability

Iron abrasion surfaces deliver consistent milling action and resist wear for long service life.

Adjustable Whitening Pressure

Sized for continuous small-line production, trials, or satellite/co-op stations.

Anti-Corrosion & Long-Term Reliability

Heavy-duty frame and components handle daily operation with minimal drift.

Heavy-Duty Iron Roller for Extra Durability

Iron abrasion surfaces deliver consistent milling action and resist wear for long service life.

Adjustable Whitening Pressure

Sized for continuous small-line production, trials, or satellite/co-op stations.

Low-Breakage Processing Technology

Tune separation efficiency and finish to suit varietal, moisture, and target whiteness.

Easy Installation & Compact Layout

Fits constrained floors; straightforward layout simplifies installation and daily use.

Anti-Corrosion & Long-Term Reliability

Heavy-duty frame and components handle daily operation with minimal drift.

Multi-grain capability

Can process rice and other grains (wheat, corn, millet) when configured appropriately.

Low-Breakage Processing Technology

Tune separation efficiency and finish to suit varietal, moisture, and target whiteness.

Easy Installation & Compact Layout

Fits constrained floors; straightforward layout simplifies installation and daily use.

Multi-grain capability

Can process rice and other grains (wheat, corn, millet) when configured appropriately.

Flow Layout

Clean → Husk → White, In One Line

Integrated cleaner–de-stoner, 6" straight-gear husker, and 8.5 iron-roll whitener run as a continuous process from paddy to finished rice. The compact frame needs ~1.5 m² and fits easily in small plants and co-ops.
Request a Quote

Powertrain

Single Drive, Stable Throughput

One power source (15 kW electric or 30 HP diesel) drives the whole set, simplifying installation and lowering energy use. Designed for ~700 kg/h paddy in and ~400 kg/h white rice out with smooth, steady flow.
See Specifications

Husking

Low-Breakage 6" Gear Husker

Precise pressure and straight-gear transmission deliver uniform shelling with minimal grain damage. Clean separation of husk and brown rice keeps the downstream load stable and protects head-rice rate
How It Works

Whitening

8.5 Iron Roll, Bright Finish

The iron-roller chamber whitens evenly with easy gap/pressure tuning. Typical results: broken rice 3–5% and overall yield 68–72%, producing bright, intact kernels ready for grading and packing.
Installation & Service

Product Configuration
Module Function Capacity (kg/h) Power Notes
Feed hopper Even feeding 700 — Stainless hopper
Twin elevators Auto transfer 700 — Connects all sections
Cleaner + de-stoner Remove trash & stones 700 — Combined unit
6" straight-gear husker Dehusking 600–700 — Low-break, stable
8.5 iron-roll whitener Whitening 400 — Bright, even finish
Broken-rice sieve (option) Split broken rice 400 0.37 kW (1-ph) Optional add-on
Power pack Single-source drive — 15 kW or 30 HP Drives full set

Installation and Maintenance notes

Install on a level, ventilated floor with moisture protection and enough clearance for access panels and discharge chutes. Anchor the frame; align the twin elevators. For electric drive, confirm voltage/phase, proper grounding, and protective devices; for diesel drive, ensure a firm base, exhaust routing, and fuel safety. Check belt/chain tension, roller rotation, and that all guards are fitted. Connect aspiration/dust outlets from the cleaner/de-stoner and whitener to a suitable collector.

Commission dry in sequence—elevators → cleaner/de-stoner → husker → whitener—verifying rotation direction, vibration, and airflow. Start with a small paddy feed, then tune: de-stoner deck angle/air volume, husker pressure and roll gap, and whitener back-pressure and knife/roller clearance to suit local variety and moisture. During operation, keep feed steady, monitor current/temperature, and clear any chokes immediately.

After shutdown, isolate power (or stop the engine), wait for all shafts to stop, then clean drum screens, gravity deck, sieves, cyclones and discharge points. Grease bearings on schedule and recheck belt/chain tension and seals. Always wear eye/ear protection and a dust mask when doors are open.
