110 Iron-Roll Rice Mill (Infeed 1,000 kg/h; Output 600 kg/h)
1/7
  • 110 Iron-Roll Rice Mill (Infeed 1,000 kg/h; Output 600 kg/h)
  • 110 Iron-Roll Rice Mill (Infeed 1,000 kg/h; Output 600 kg/h)
  • 110 Iron-Roll Rice Mill (Infeed 1,000 kg/h; Output 600 kg/h)
  • 110 Iron-Roll Rice Mill (Infeed 1,000 kg/h; Output 600 kg/h)
  • 110 Iron-Roll Rice Mill (Infeed 1,000 kg/h; Output 600 kg/h)
  • 110 Iron-Roll Rice Mill (Infeed 1,000 kg/h; Output 600 kg/h)
  • 110 Iron-Roll Rice Mill (Infeed 1,000 kg/h; Output 600 kg/h)
110 Iron-Roll Rice Mill (Infeed 1,000 kg/h; Output 600 kg/h)

110 Iron-Roll Rice Mill (Infeed 1,000 kg/h; Output 600 kg/h)

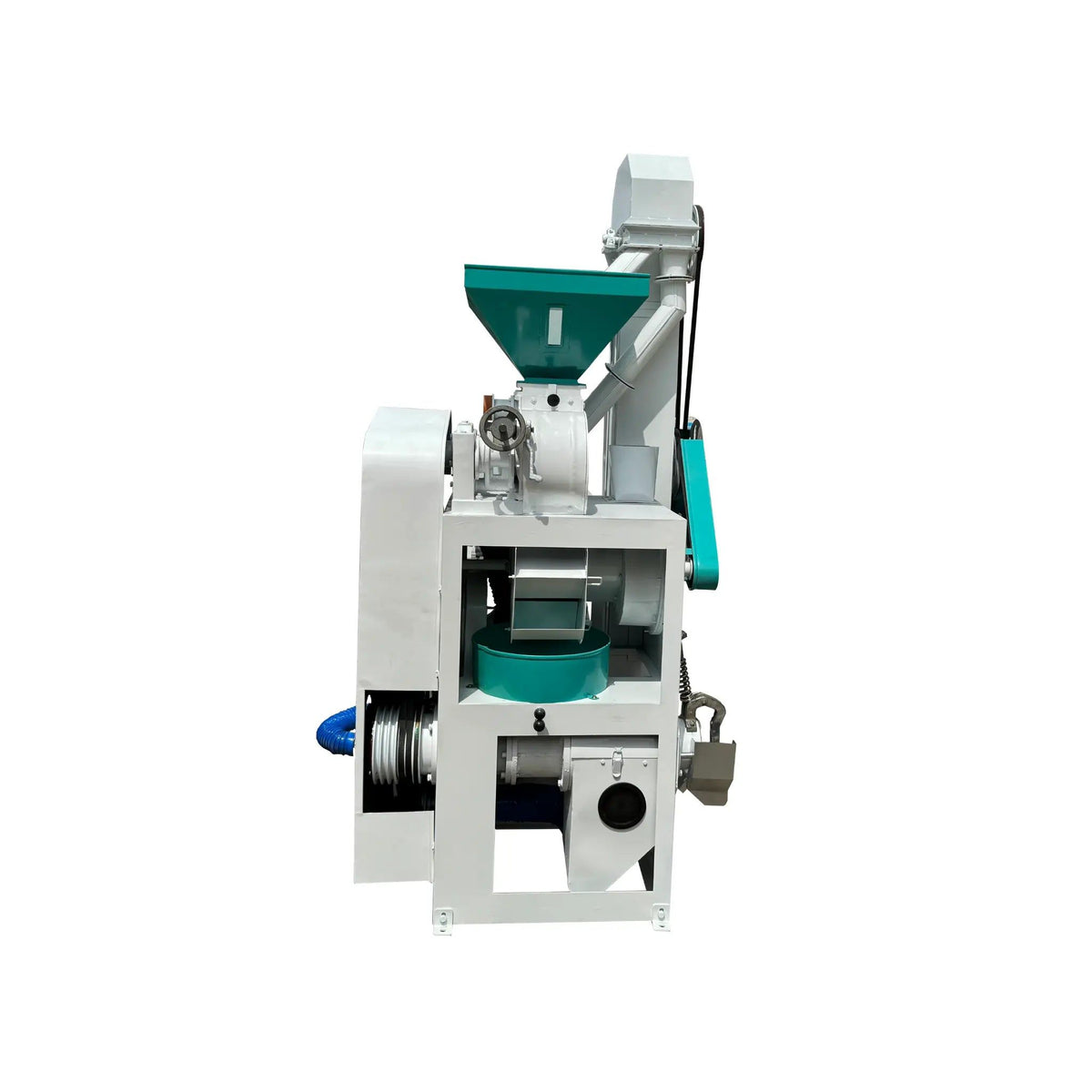

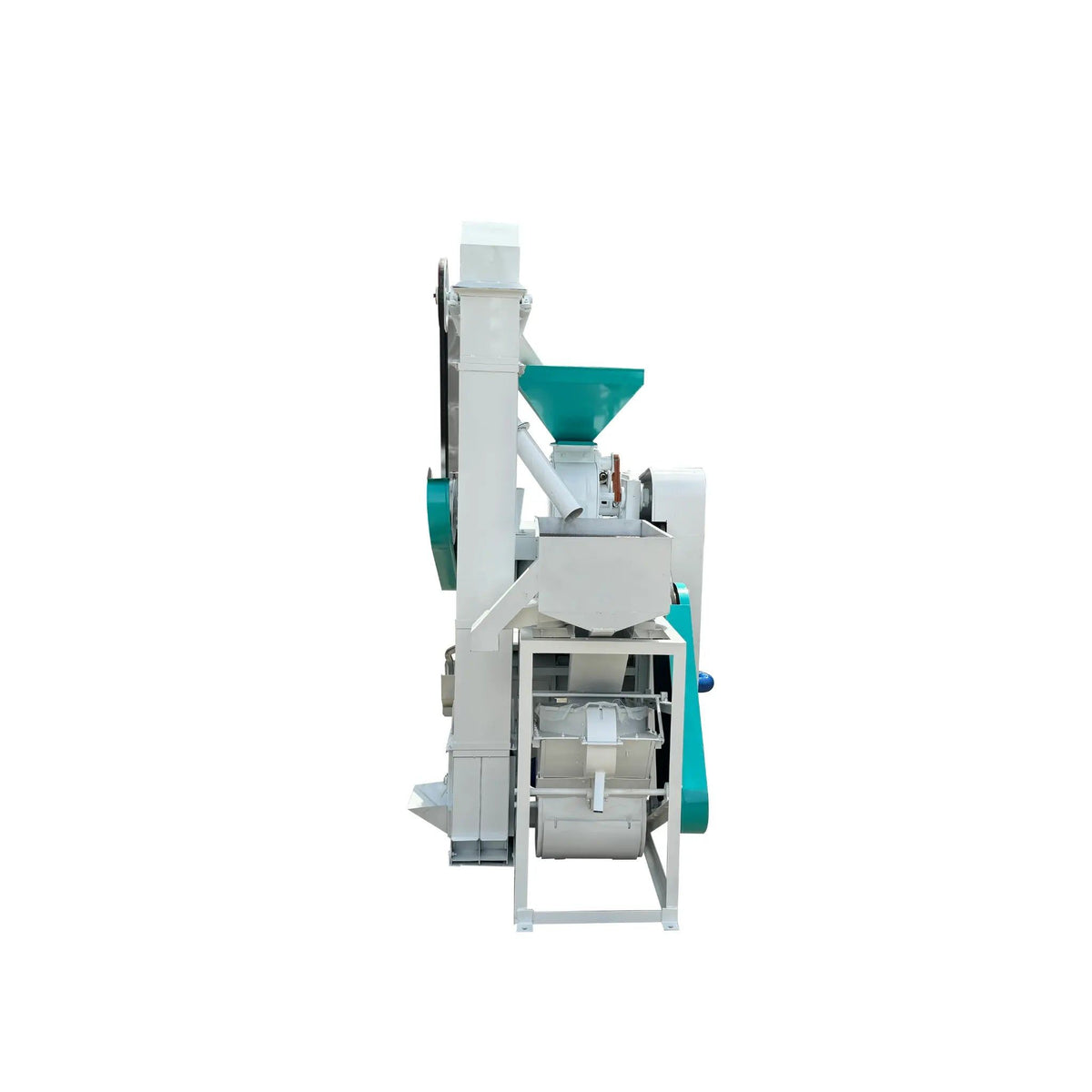

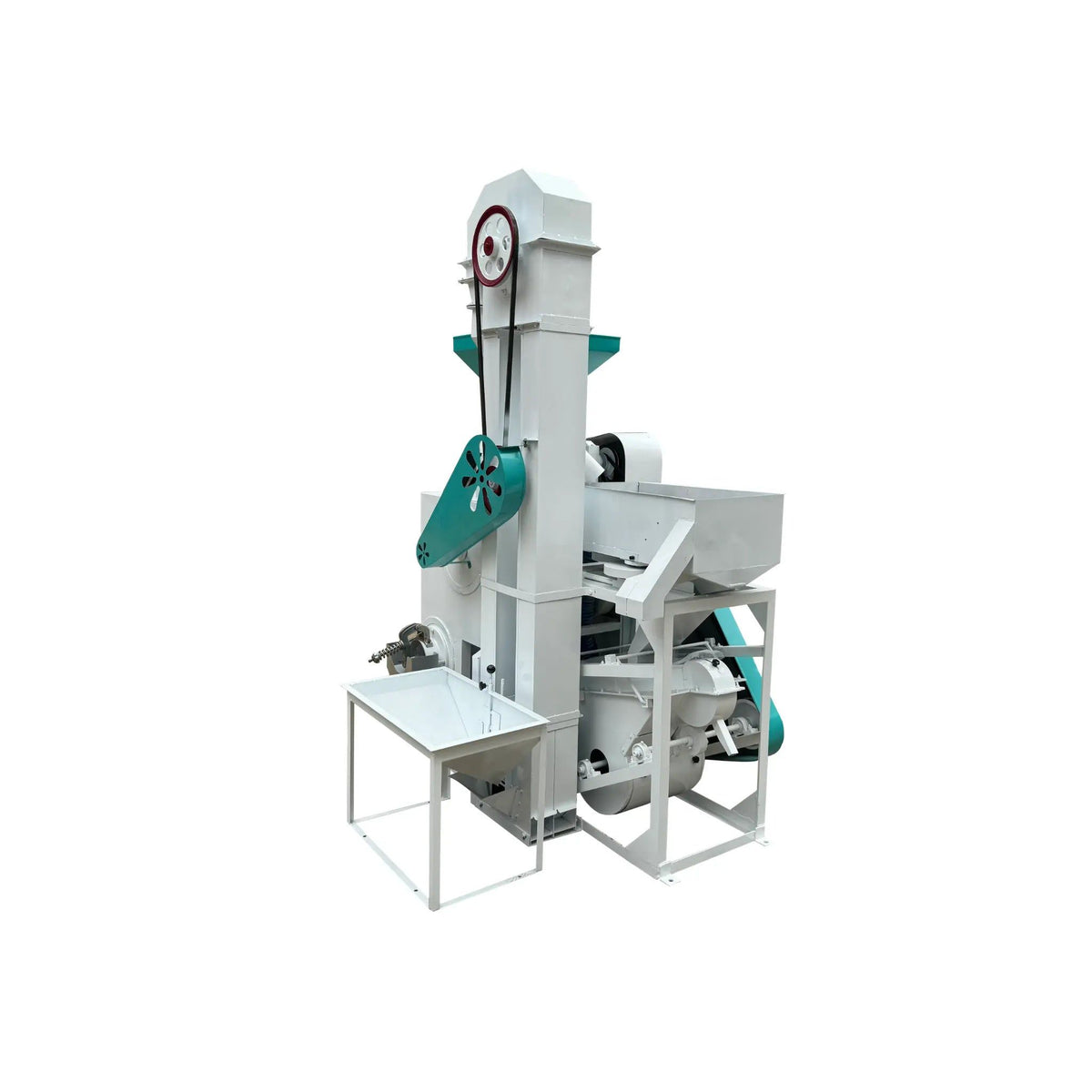

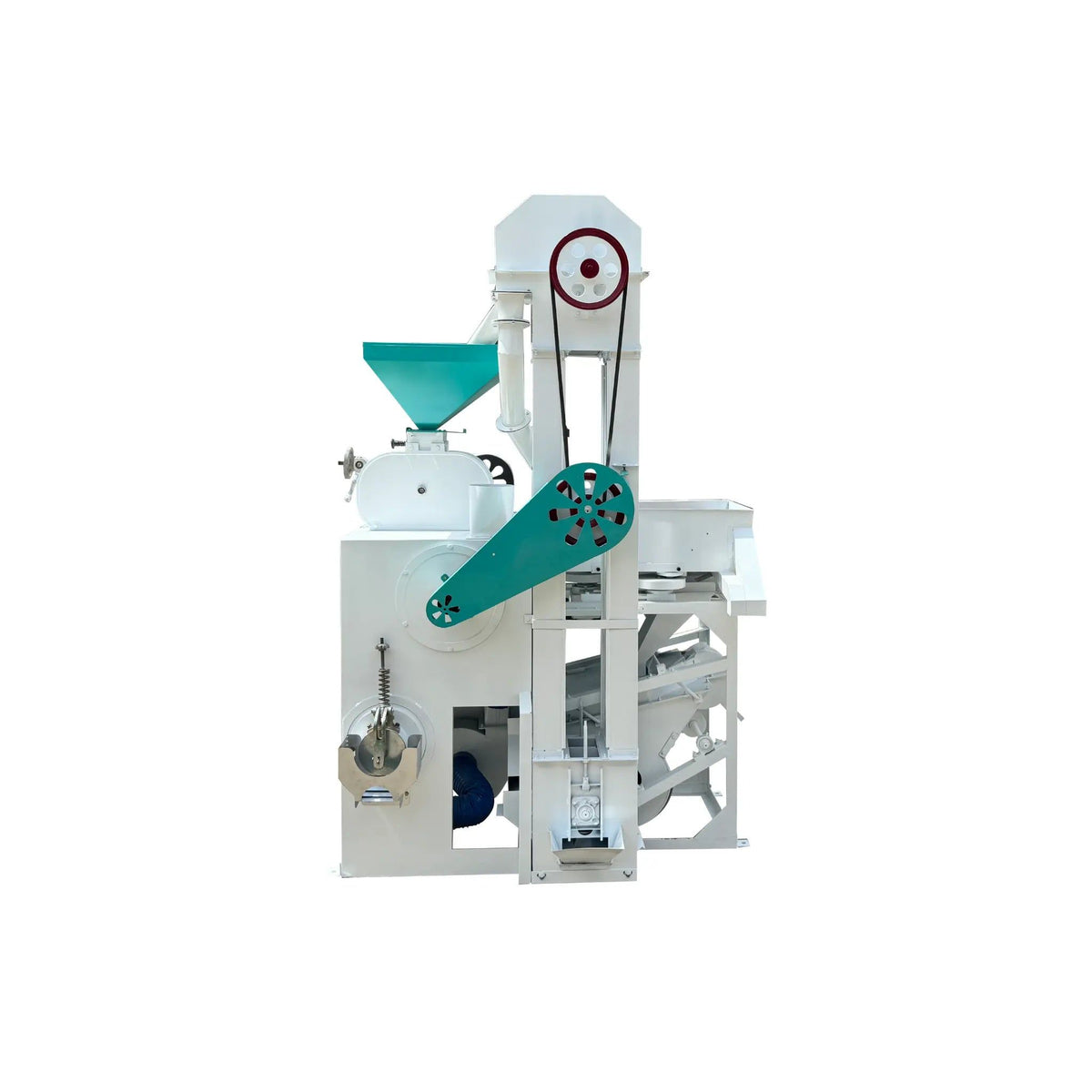

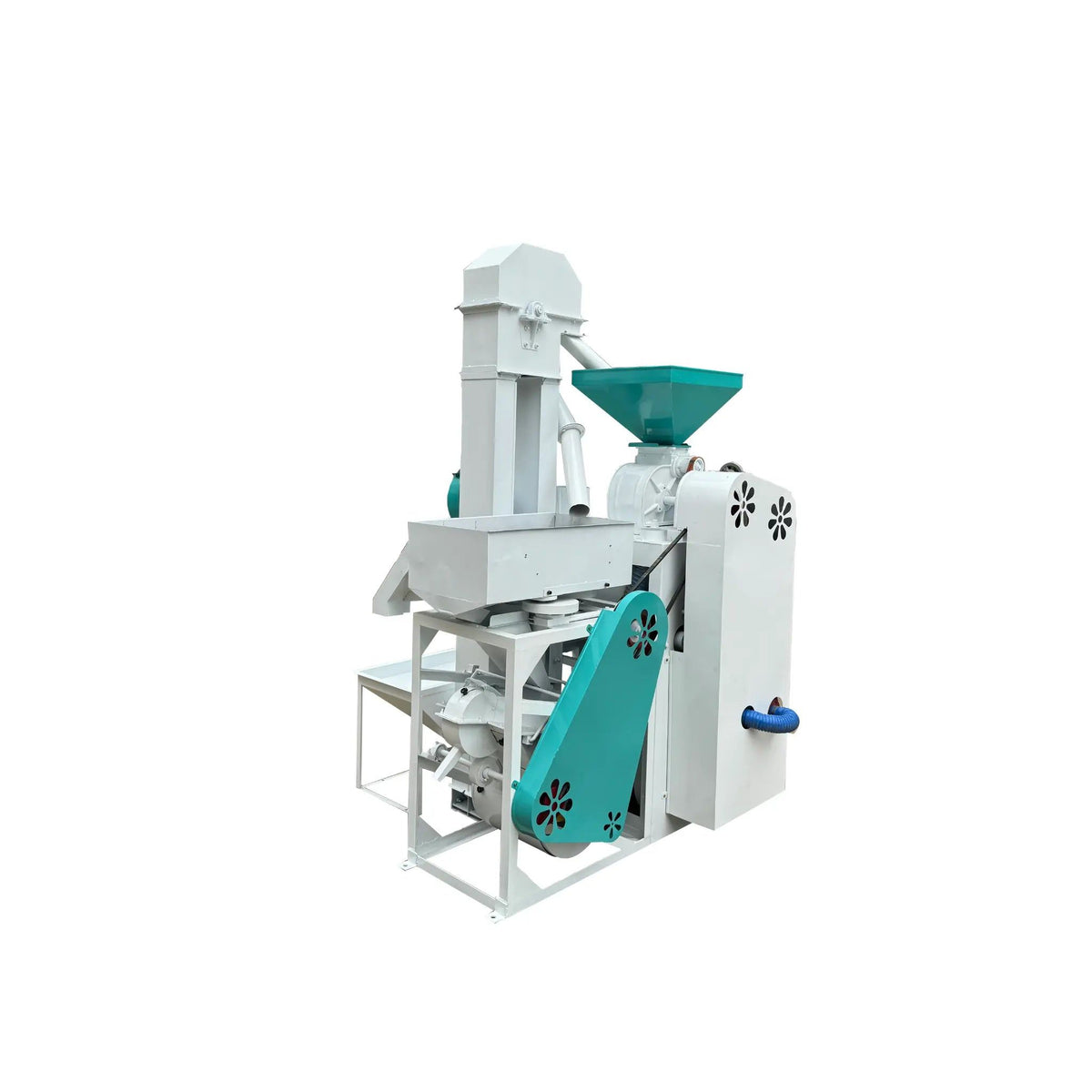

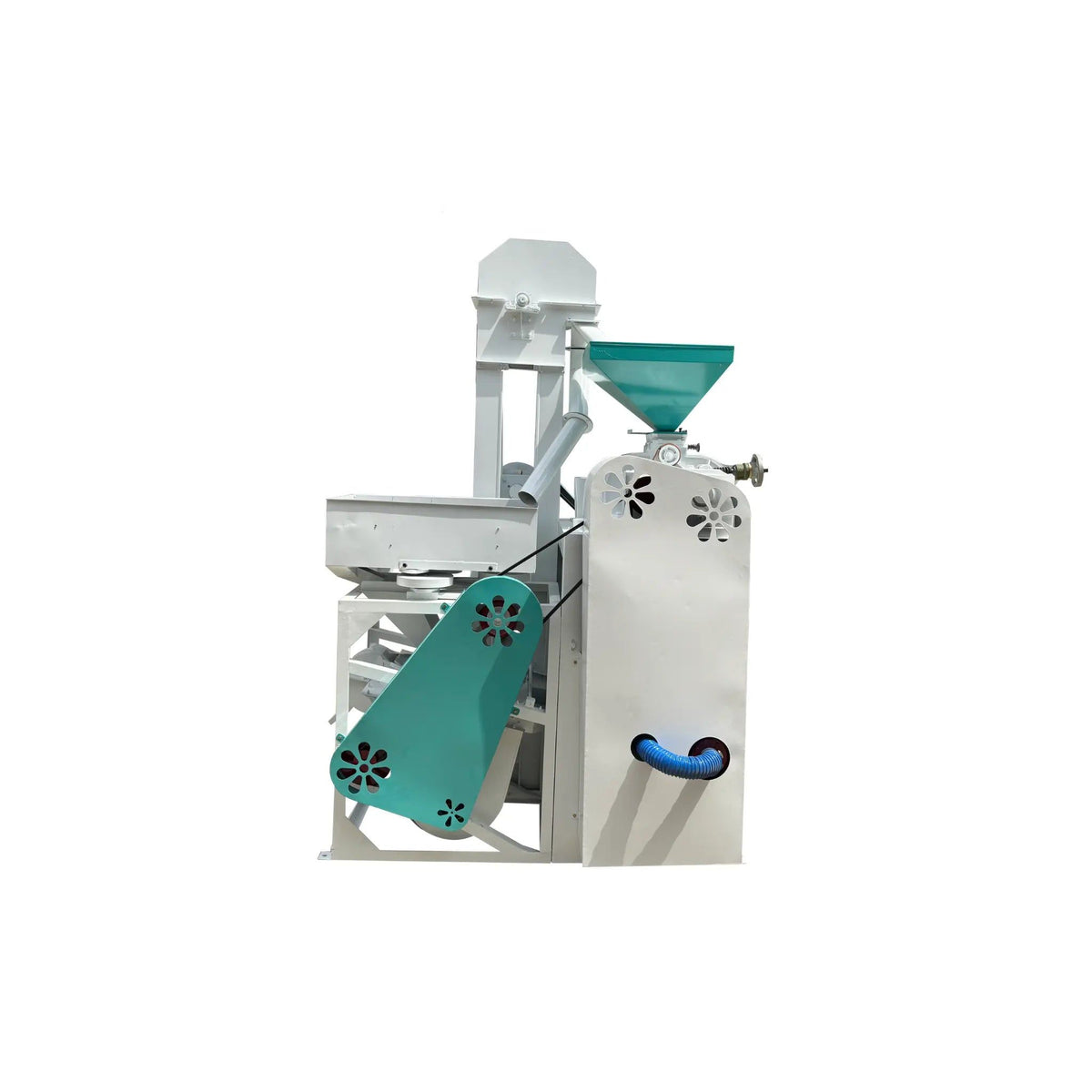

The 110 Iron-Roll Rice Mill is a high-efficiency combined milling system that integrates cleaning, de-stoning, husking, and whitening. The full set comprises a feed hopper, double bucket elevator, combined cleaning & de-stoning machine (TQS380), a 6-inch straight-gear husker, and the 110 iron-roll rice mill. Driven by a single power source, it features a compact structure, easy operation, and a small footprint. The cleaning section adopts a planar rotary mechanism which, compared with the front-back oscillating style used on the 8.5 iron-roll model, delivers higher cleaning efficiency and more stable operation—well-suited to higher-capacity rice processing
Overview
  • Integrated cleaning, de-stoning, husking, and whitening for continuous, automated processing.

  • Planar rotary cleaning structure for more stable de-stoning performance.
  • Uses the TQS380 cleaner–de-stoner (same structure as the 8.5 iron-roll model).
  • Single power source drive for energy-efficient operation.
  • Rice yield 68%–72% with only 3%–5% broken rate.
  • Compact layout; footprint approx. 1.8 m².
Why Choose It
  • Stronger cleaning capacity for large-volume continuous runs.

  • Simple operation—one operator can run the whole set.
  • Well-matched power and smooth running with high rice yield.
  • Robust structure, easy maintenance, and readily available common spare parts.
  • Small footprint and compact layout—ideal for small/medium mills and regions without stable electric power.
Technical Specifications
  • Overall dimensions: 1500 × 1200 × 2300 mm (L×W×H)

  • Machine weight: 600 kg (bare machine)
  • Infeed: 1,000 kg/h; Output: 600 kg/h
  • Power requirement: 18.5 kW motor or 40 HP diesel engine
  • Main shaft speed: 1100 r/min
  • Broken rice rate: 3%–5%; Rice yield: 68%–72%
  • Drive configuration: single power source for the complete unit.
View Catalog (PDF)

Recommended Applications

Suitable for medium-size rice mills, township grain stations, and farmer cooperatives—especially users requiring higher capacity and finished rice quality. A well-balanced choice for stability and cost-performance.

Service and Warranty

12-month warranty from shipment (consumables excluded). Includes installation and commissioning guidance, operator training, and maintenance instructions. Lifetime remote technical support with ample stock of genuine spare parts for fast dispatch; on-site service can be arranged if needed.

High-Capacity Industrial Milling

Built for continuous runs with approx. 1,000 kg/h infeed and 600 kg/h finished output—stable throughput for small to mid-size plants.

Durable Iron Roller with Wear-Resistant Coating

Hard, long-life roll surface maintains cut and finish over long campaigns, lowering cost per ton and downtime.

Energy Efficient & High Yield

Single power source (18.5 kW motor or 40 HP diesel) with efficient aspiration delivers 68–72% yield and a low 3–5% broken rate.

High-Capacity Industrial Milling

Built for continuous runs with approx. 1,000 kg/h infeed and 600 kg/h finished output—stable throughput for small to mid-size plants.

Durable Iron Roller with Wear-Resistant Coating

Hard, long-life roll surface maintains cut and finish over long campaigns, lowering cost per ton and downtime.

Adjustable Roller Pressure & Gap

Fine-tune whitening pressure and discharge back-pressure to hit target whiteness while protecting head-rice yield and reducing breakage.

Easy Maintenance & Replacement

Quick-access doors, external belt drives, and straightforward roll change procedures shorten service stops and simplify daily cleaning.

Energy Efficient & High Yield

Single power source (18.5 kW motor or 40 HP diesel) with efficient aspiration delivers 68–72% yield and a low 3–5% broken rate.

Smooth Grain Flow & Continuous Operation

Matched hopper, double bucket elevator, cleaner–de-stoner, and husker feed the whitener uniformly, minimizing recirculation and keeping the line moving.

Adjustable Roller Pressure & Gap

Fine-tune whitening pressure and discharge back-pressure to hit target whiteness while protecting head-rice yield and reducing breakage.

Easy Maintenance & Replacement

Quick-access doors, external belt drives, and straightforward roll change procedures shorten service stops and simplify daily cleaning.

Smooth Grain Flow & Continuous Operation

Matched hopper, double bucket elevator, cleaner–de-stoner, and husker feed the whitener uniformly, minimizing recirculation and keeping the line moving.

Auto Infeed

Feed hopper & double elevator

Automatic feeding and steady transfer at ~1,000 kg/h, with sealed casings to reduce spillage and dust for smoother upstream-to-downstream flow.
Request a Quote

Clean & De-stone

Combined cleaner–de-stoner (TQS380)

Removes straw, sand, and stones with a planar rotary action for higher cleaning stability, delivering a consistently clean paddy stream to the husker.
See Specifications

6" Husker

6-inch straight-gear husker

High husking efficiency with low broken rate and uniform shelling; φ154 × 200 mm rubber rolls and adjustable pressure/gap let you match local varieties and moisture.
How It Works

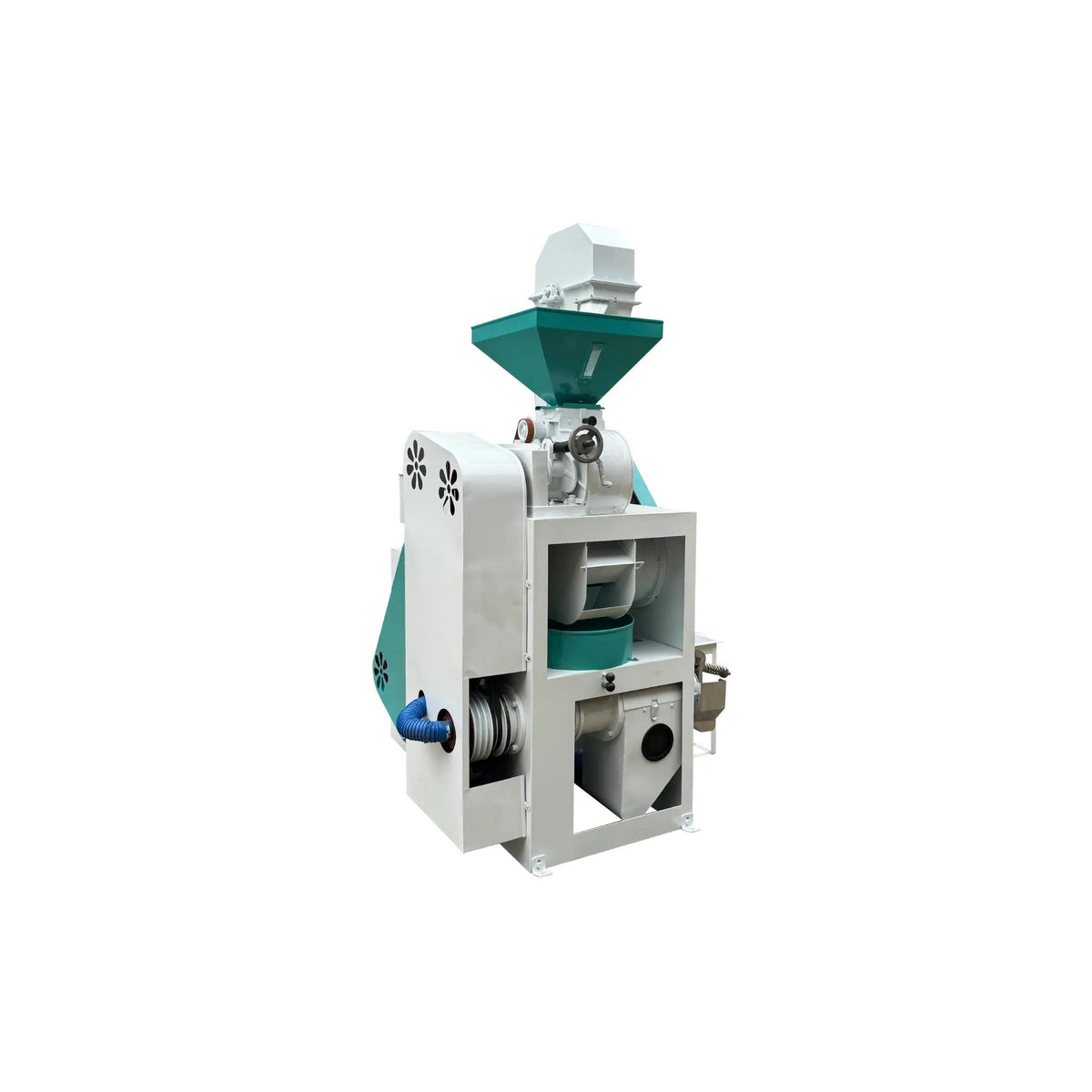

110 Iron Whitener

110 iron-roll rice mill

Excellent whitening with air-assisted bran extraction for bright, intact kernels and stable performance; target 68–72% yield with 3–5% broken at ~600 kg/h output (main shaft ≈1,100 r/min).
Installation & Service

Product Configuration
Module Model / Type Capacity Power Key Specs
Feed hopper Stainless feed hopper 1,000 kg/h (infeed) — Uniform feed to elevator
Double elevator Two-stage transfer 1,000 kg/h Shared with main set Sealed casings reduce spillage/dust
Cleaner–de-stoner TQS380, planar rotary 1,000 kg/h Included in set Integrated impurity removal + stone separation
Husker 6" straight-gear rubber-roll husker 900–1,000 kg/h Included in set Roll size φ154 × 200 mm; high shelling rate
Whitener 110 Iron-Roll Rice Mill 600 kg/h (output) 18.5 kW motor or 40 HP diesel (single power source) Main shaft 1,100 r/min
Broken-Rice Sieve Grading sieve 600 kg/h 0.37 kW (single-phase optional) Separates brokens from head rice
System Totals / Installation — Infeed: 1,000 kg/h; Output: 600 kg/ Power options: 18.5 kW electric or 40 HP diesel Overall size 1,500 × 1,200 × 2,300 mm; Machine weight ≈ 600 kg

Installation and Maintenance notes

Install the 110 Iron-Roll Rice Mill on a level, ventilated floor with moisture protection and connect dust extraction to the cleaner–de-stoner, husker aspiration, and whitener cyclone. Anchor the main frame, plumb and align the double bucket elevator, and verify correct voltage/phase (or 40 HP diesel setup), grounding, belt/chain tension, rotation direction, and that all guards are fitted.

Commission with no load in sequence: power/engine → elevators → TQS380 cleaner–de-stoner → 6" straight-gear husker → 110 iron-roll whitener → broken-rice sieve. Start with a small paddy feed and tune de-stoner air/angle, husker pressure/roll gap (φ154×200 mm), separator purity, and whitener pressure/gap and aspiration to suit local variety and moisture.

Keep feed steady during operation, monitor amperage/temperature and elevator tracking, and clear any chokes immediately. After shutdown, isolate power, wait for all shafts to fully stop, then clean screens, the de-stoner deck, cyclones, and the grading sieve; inspect belts, seals, and bearings; grease per schedule and recheck tensions. Wear eye/ear protection and a dust mask whenever panels are open.
