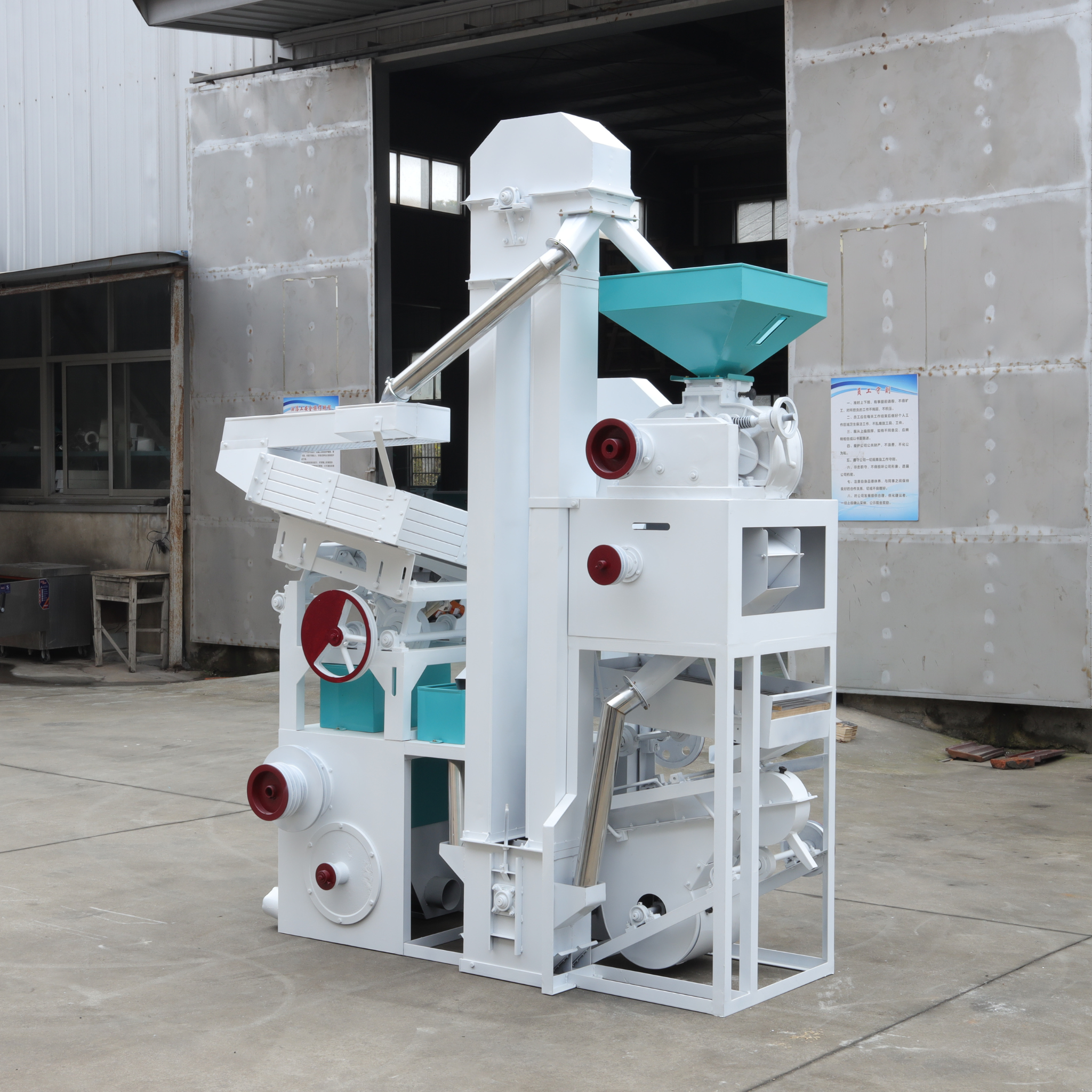

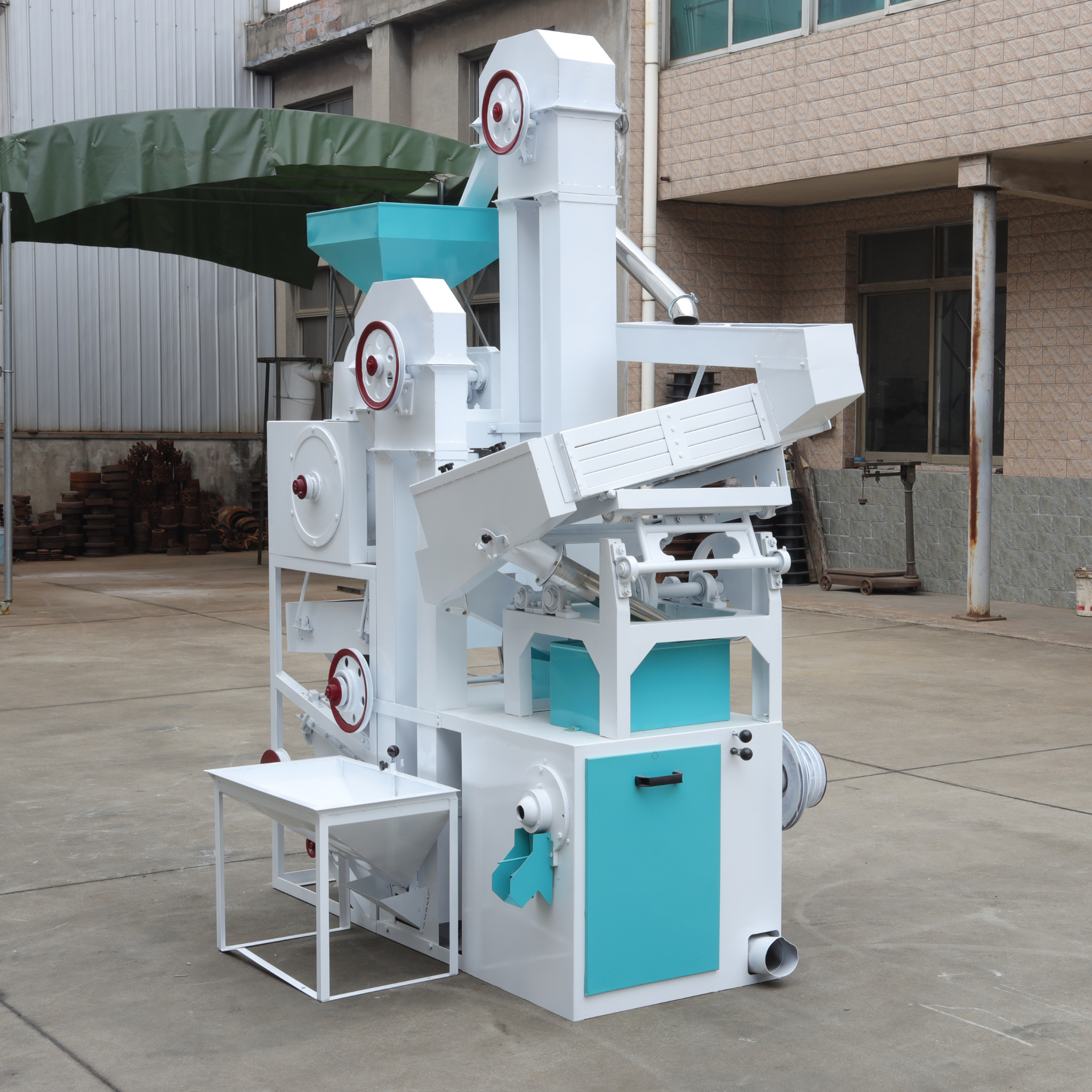

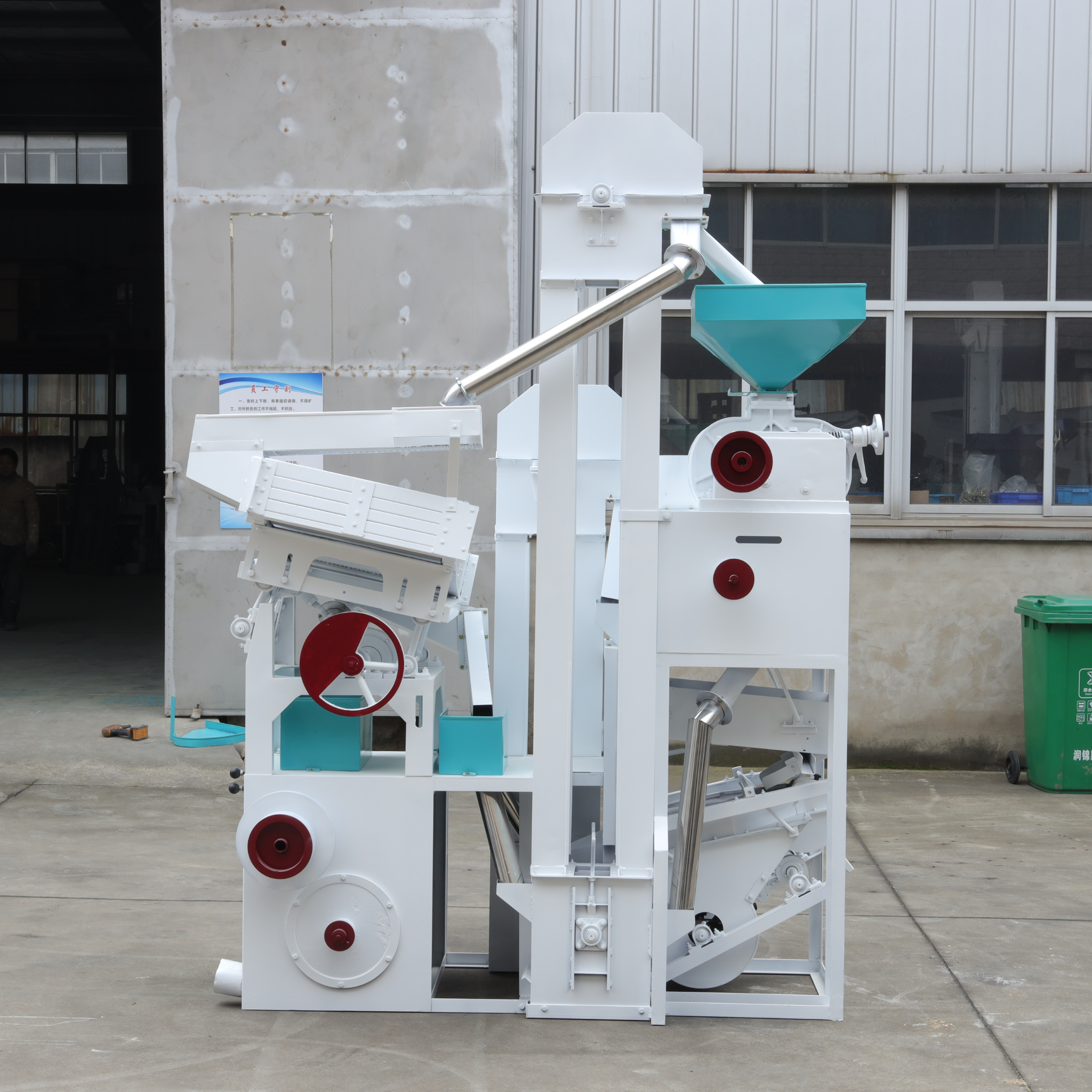

6LM-15 Integrated Rice Mill (30 HP Diesel or 15 kW Electric)
The 6LM-15 Integrated Rice Mill is a compact, no-installation rice processing unit designed for small to medium rice mills. It combines multiple stages — cleaning, de-stoning, husking, separation, and whitening — into a single integrated machine for stable and efficient operation.
Key Features:
-
Output: 600 kg/h | Power Options: Diesel 30 HP or 15 kW Electric
-
All-in-one rice milling: cleaning, de-stoning, husking, separation, whitening
-
Compact, space-saving design requiring no special installation
-
Ideal for small commercial rice milling operations or rural rice processing
Overview
• Compact, integrated design; footprint approx. 1.8 × 1.4 m
• Cleaning, de-stoning, husking, separation, and whitening completed in one machine
• Husking rate up to 85%–90%; whitening rate 68%–72%
• Rational structure, easy to operate, simple to maintain
• Suitable for township grain stations, small processing plants, and cooperatives
Why Choose It
• All-in-one model: delivered as a complete set; ready to use without installation
• Dual power: 30 HP diesel or 15 kW electric to suit different environments
• High productivity: 600 kg/h handling capacity for fast, stable output
• Easy maintenance: standardized wear parts, simple cleaning, low upkeep cost
• High durability: quality materials and advanced workmanship for long service life
Technical Specifications
• Blower-type combined cleaner & de-stoner (two-screen design; cleaning + de-stoning)
– Throughput: 1,000 kg/h; screen apertures: 6 mm + 2 mm
• 6-inch gear husker (high-efficiency husking with durable rubber rolls)
– Roll size: φ154 × 200 mm; husking rate 85%–90%
• Paddy–brown gravity separator (multi-layer separation)
– Deck: 850 × 600 mm; 4 layers; output 600–700 kg/h
• Emery-roller rice mill (whitening)
– Emery roll size: φ400 × 150 mm
• Raw-grain elevator: vertical lift 1.9 m
• Double elevator: vertical lift 2.7 m
Pickup currently not available
Recommended Applications
Ideal for township grain depots, small milling plants, and cooperatives with daily throughput around 15 tons. The compact footprint, simple operation, and easy maintenance make it especially suitable for regions with unstable power or where diesel drive is preferred.
Service and Warranty
12-month warranty (consumables excluded). Includes installation guidance, operator training, and a daily maintenance manual. Lifetime remote technical support and fast dispatch of genuine spare parts are available.
Integrated Rice Processing System
Cleaning, de-stoning, husking, separation, whitening and grading built into one compact frame to simplify layout and commissioning.
High Output & Stable Performance
Matched drives and controlled material flow deliver dependable daily throughput with minimal stoppages.
Energy-Efficient & Cost-Effective
Right-sized motors and shared aspiration points reduce kWh per ton and overall operating cost.
Superior Rice Quality
Optimized pressure and aspiration remove bran and heat quickly for bright whiteness and low chalk.
Modular Structure for Easy Maintenance
Large doors, slide-out components and standard wear parts make routine service fast and predictable.
Durable & Export-Grade Design
Heavy-gauge steel, quality bearings and protective guards ensure long service life in continuous duty.
Pre-Clean & De-Stone
Pre-Cleaning & De-Stoning
A drum pre-cleaner and two-stage screens (6 mm + 2 mm) remove straw, sand, and fines before grain touches sensitive equipment. The integrated de-stoner lifts out dense impurities for a safer, cleaner feed, reducing wear and protecting downstream yield.
High-Efficiency Husking
High-Efficiency Husking
Gearless drive and ϕ154 × 200 mm rubber rolls deliver stable husk removal at low breakage. Pressure and roll gap are easy to set, so you can match different varietals and moisture levels without slowing the line.
Gravity Paddy–Brown Split
Gravity Paddy–Brown Separation
A multi-layer gravity deck (4 tiers, 850 × 600 mm) separates unhulled paddy from brown rice with high purity. Clean brown flows forward to whitening while paddy returns automatically, cutting recirculation and stabilizing throughput.
Controlled Emery Whitening
Controlled Emery Whitening
The emery roll (ϕ400 × 150 mm) whitens evenly with adjustable back-pressure and airflow for cool, clean kernels. Target finish and head-rice rate are easy to tune, delivering bright color and consistent bag quality at 600–700 kg/h output.
Installation and maintenance notes
Install the ZNJ-15 on a level, dry, well-ventilated floor with clearance for inspection panels, elevators, and discharge chutes, then anchor the frame, align the bucket elevators, connect dust extraction (pre-cleaner/de-stoner, husker aspiration, whitener cyclone), and verify correct voltage/phase, grounding, belt/chain tension, motor rotation, and guarding before startup.
Commission modules in sequence with no load (panel → elevators → pre-cleaner → de-stoner → husker → paddy–brown separator → whitener), introduce paddy gradually, and fine-tune de-stoner air/angle, husker pressure/roll gap, separator angle/stroke, and whitener knife/roller clearance and airflow for local varieties. For upkeep, clean drum screens, the gravity deck, cyclones, and ducts at the end of each shift; check belt/chain tension, seals, and bearings; sample separation purity; and wipe observation windows.
Weekly, inspect the emery roll and rice knife, verify whitener back-pressure and airflow, check elevator buckets/splices and fasteners on vibrating parts, lubricate per schedule, and tighten electrical terminals; replace worn husker rolls or screen meshes as needed. Always isolate power and wait for a full stop before opening doors or removing guards, and use eye/ear protection and a dust mask during cleaning.
